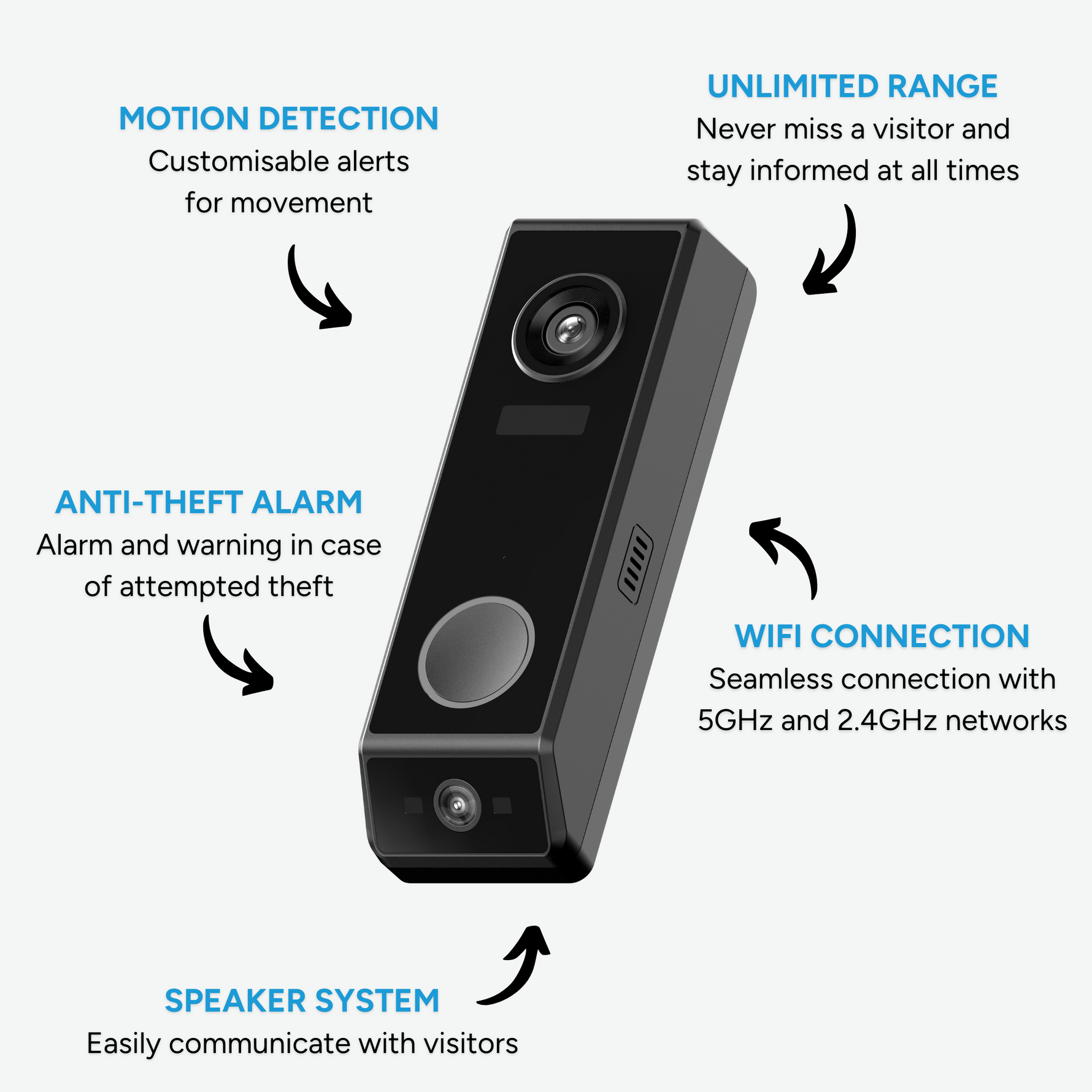

DualCam Video Doorbell

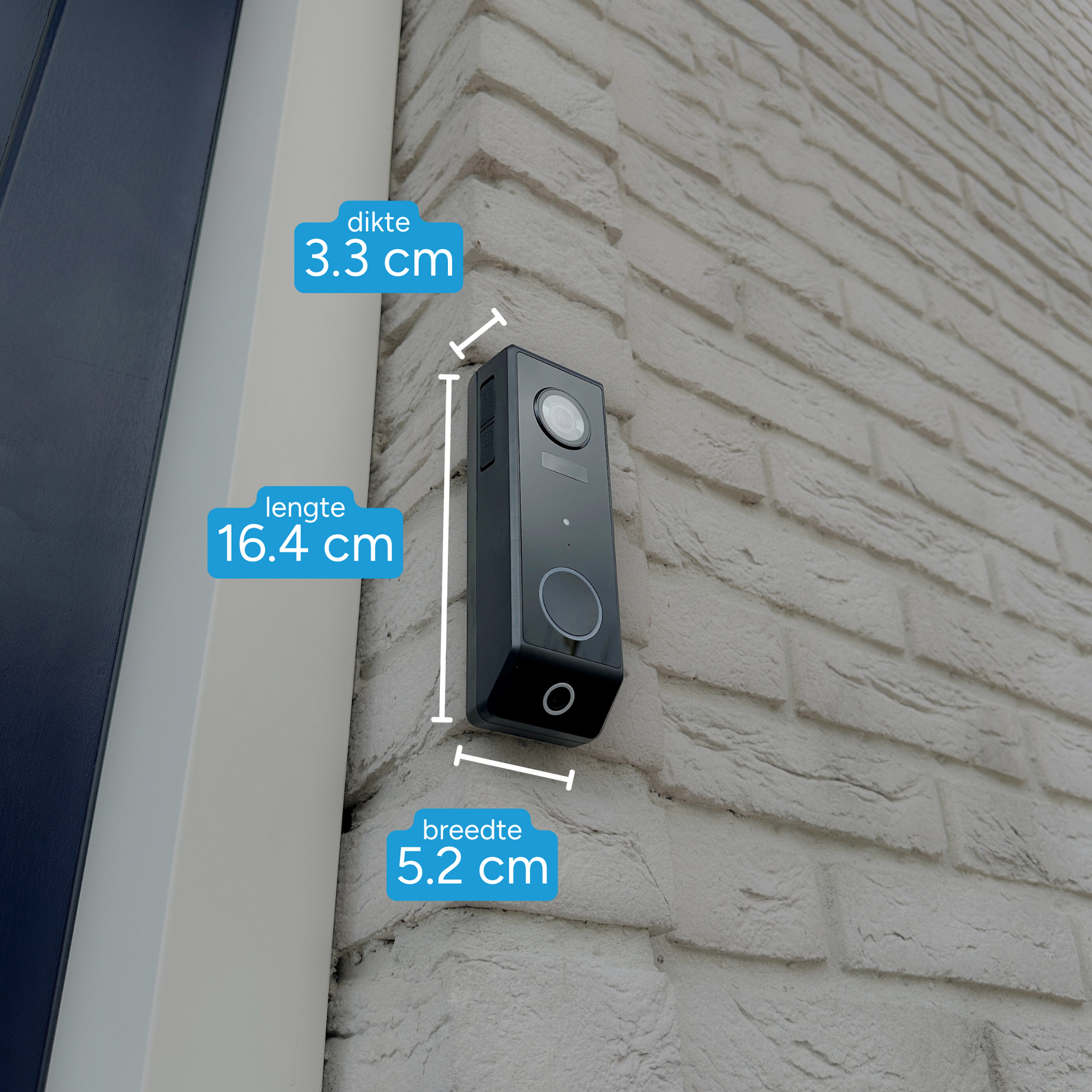

5.4cm wide x 3.6cm high x 16.5cm long
(see product photos for dimensions)

Whenever a visitor presses the doorbell button, a video recording will automatically start in which the visitor appears in the picture. You can determine the duration of this recording yourself; however, it will automatically end as soon as there is no more movement visible in front of the camera. During this period, all audio, including possible interactions with the visitor via the built-in speakers, is recorded and integrated into the video. These recorded images are stored both in the associated app and on your mobile device, but you also have the option of saving them directly to an SD card if you prefer. If the SD card reaches its storage limit and new recordings are made, the oldest files are automatically overwritten to make room for new recordings. In situations where movements are detected without the doorbell being pressed, these moments will also be recorded automatically and the recording will stop as soon as there is no more movement. In these cases too, all audio is recorded and stored within the video. Such recordings are stored on the SD card that is inserted in your video doorbell. The process of overwriting old footage to make room for new recordings is fully automatic. We strongly recommend that you always use an SD card in your doorbell. This not only makes it easier to retrieve footage in a clear manner, but also ensures reliable and local storage of your data, so that you have access to your recordings at all times.

Your camera footage is strictly private and intended for your eyes only. For this reason, during the initial setup procedure, you will be asked to create a personal account. This is a crucial step that contributes to the security of your system, as it provides an extra layer of protection against unauthorized access, such as that from hackers. By setting a unique and strong password for your account, you can significantly increase the security of your camera footage.

The recorded images are securely stored on an SD card inside the video doorbell. This method of local storage ensures that you retain full control over your footage, without the need for a permanent internet connection to access your images. It also offers the advantages of quick accessibility and easy manageability.

Should you need to view the footage on your smartphone or other mobile device, the system provides a streamlined and secure method of downloading the footage from the SD card to your phone. This feature allows you to access and manage your footage at any time and from any location as long as you have access to an internet connection.

It is important to emphasize that when managing your camera footage, both local storage on the SD card and downloading to your phone, is secured with advanced encryption technologies. These technologies ensure that your privacy is maintained and that your footage is protected from unwanted access.

Your privacy and security are our top priority. That is why we advise you to regularly change your passwords and to choose passwords that are difficult to guess. This, combined with the robust security measures that are already integrated into our system, provides a solid foundation to protect the privacy of your camera images.

The doorbell is extra protected against theft with a special security screw that is placed on the top of the doorbell. This screw prevents the doorbell from being easily removed. In order to remove the doorbell, a special tool is included with which you can safely and easily unscrew the screw. This ensures maximum protection and ease of use.

Very important to know! The doorbell works perfectly within a radius of 20 meters from your wifi point. The doorbell chime must be located within a radius of 30 meters from the doorbell, because it is uniquely linked to your doorbell and does not need wifi.

Yes, you can easily pair your Beldeur video doorbell with Google Home and Amazon Alexa via the app. This allows you to view live footage on a compatible device, such as a Google Nest Hub or an Amazon Echo Show, and use voice commands to check the doorbell status. Refer to the manual or our customer service for step-by-step instructions on how to pair.

The process is very simple. Start by downloading the application, turn on your video doorbell, and then follow the instructions within the app on your phone. Voilà, the installation is complete!

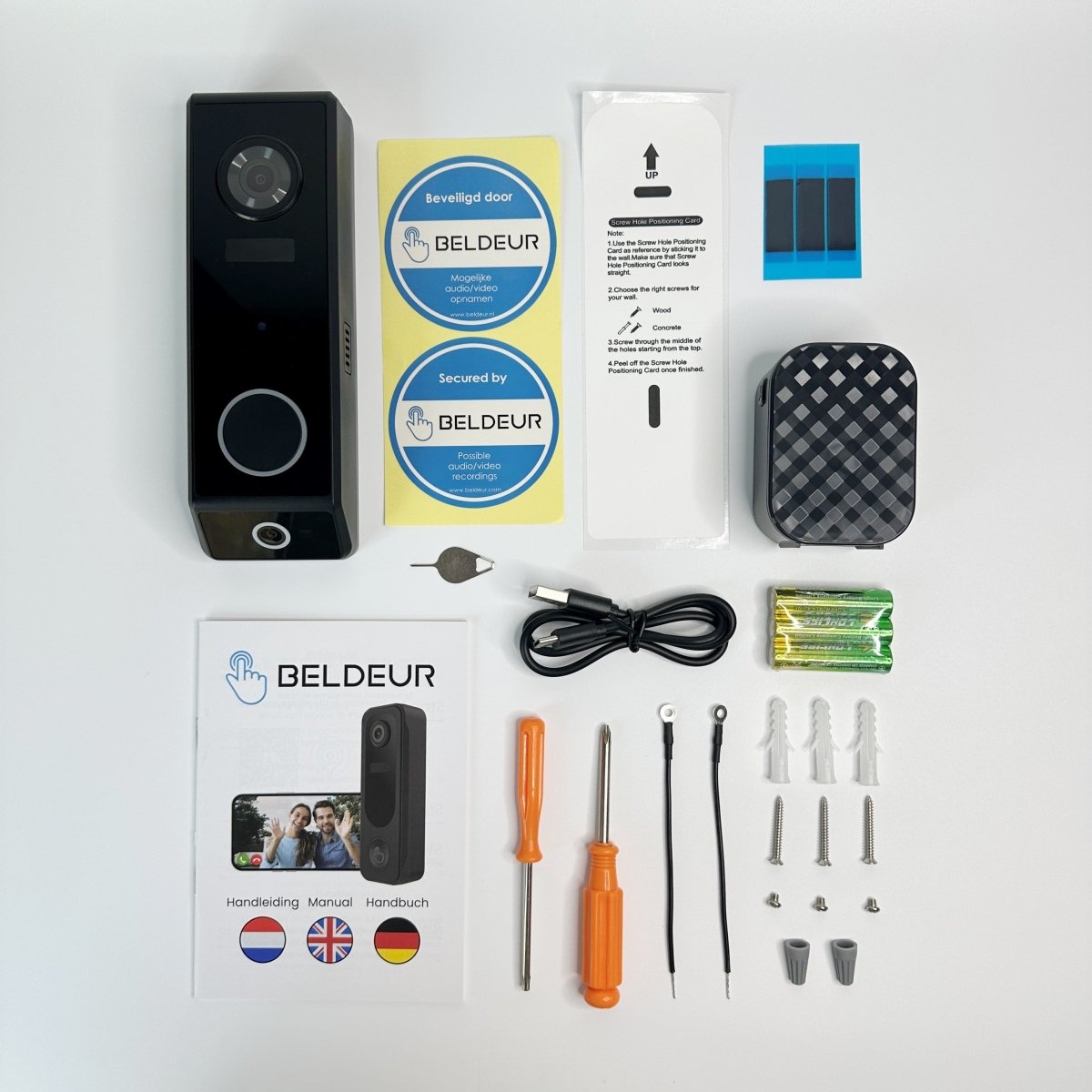

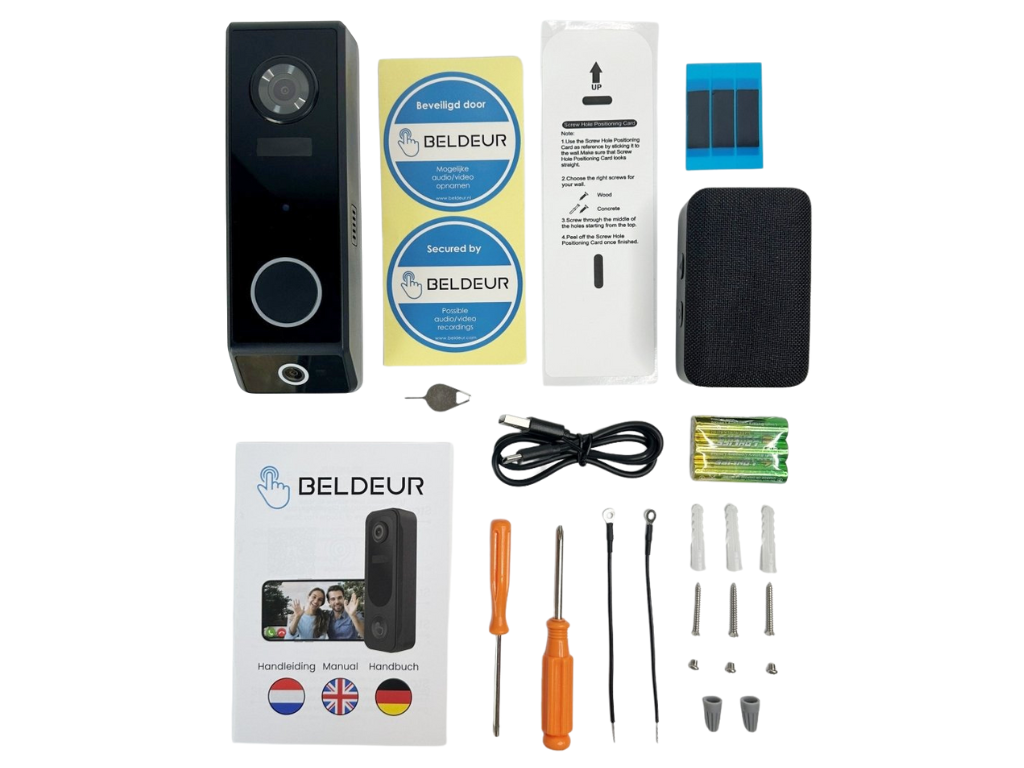

Now that your doorbell is functioning properly, you can mount it in your desired location using the included installation kit.

Of course!

When using our DualCam Video Doorbell wired, you will need a bell transformer or adapter. The doorbell requires a voltage of 12-24V AC. Do you already have a bell transformer at home that supplies this voltage? Then you do not need our adapter.

Do you want to use your new doorbell wired and do you not have a bell transformer yet? Then our adapter is the perfect solution. Our adapter supplies mains power with a voltage of 18V AC. The adapter can easily be placed in the socket, and with the 5 meter long cable you can connect the wires to the desired mounting location.

For wireless use, you do not need a bell transformer or adapter. You can charge the doorbell with the supplied USB cable. The battery lasts an average of 2 months and is fully charged within 8 hours.

At Beldeur, we are committed to not only delivering high-quality video doorbells, but also a hassle-free and budget-friendly user experience. Unlike our competitors, who often charge subscription fees, we offer our customers the convenience of our video doorbells and the accompanying app completely free of charge, with no hidden subscription fees. This is part of our commitment to providing exceptional value and service.

You only pay the one-time purchase price of the doorbell and all the functions described are completely free of charge.

General

Storage SD card(Max.128GB)

IP Rating IP65

Power Supply DC 5V/2A

Power Consumption Max. 2W

PIR Angle 118°

Operating Temperature -20 °C to 50 °C

Stand-by Time 5 months

Working Time 2 months (20 times wake up per day) (varies based on settings, usage & temperature)

PIR Detection Range Max. 6m

Built-in mic/speaker

Working Current 150-200 mA (IR off)

Wireless 2.4Ghz WIFI & 5Ghz WIFI (IEEE802.11b/g/n)

Supported Mobile Phone OS iOS 9 or later, Android 5 or later

Security AES128

Battery & PIR

Capacity 5200mAh rechargeable Li batteries

Standby Current 200-800 µA (average)

HTTP, DHCP, DNS, TCP/IP

Interface Protocol Private

Wireless Security 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Communication Protocol

Lens&FOV(H/V/D) 3.2mm@F2.0, 144°/115°/87°@D/H/V

Alarm Trigger Button triggering, PIR detection, anti-theft alarm

Video & Audio

Compression H.264

Bit Rate 32Kbps~2Mbps

Frame Rate 1~25fps

Dual Stream Yes

Audio Input/Output

IR Distance Night visibility up to 10m

Day/Night Auto(ICR)/Color/B&W

WDR DWDR

Image Sensor 1/2.7'' 3 Megapixel CMOS（SENSOR: SC301IOT)

Effective Pixels 1984(H) x 1488(V)

Min. Illumination Color 0.1Lux@F2.0,

Black/White 0.01Lux@F2.0

CPU INGENIC T31ZL
